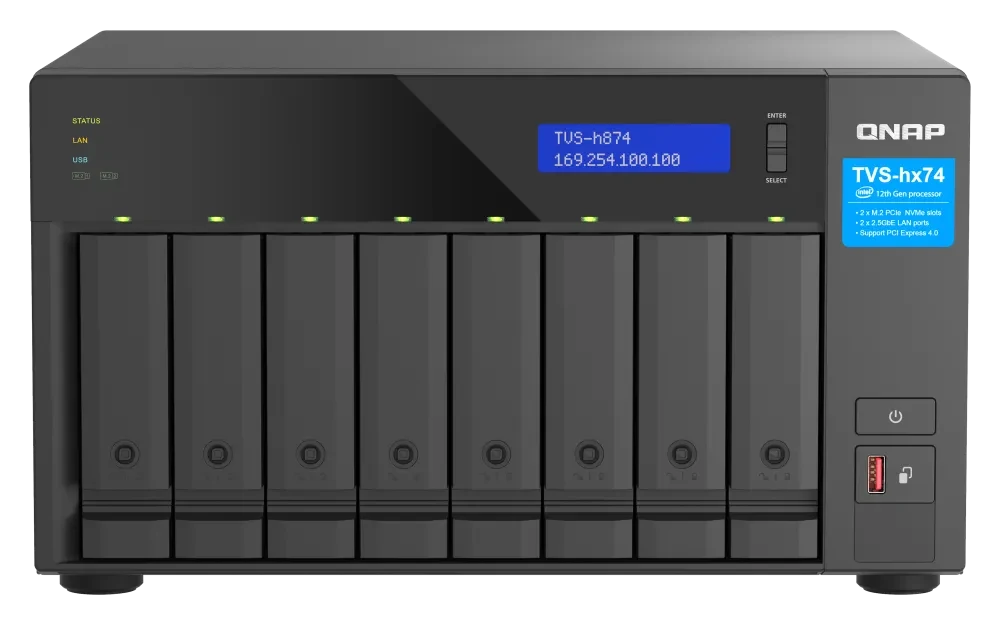

QNAP TVS-h874X

← Back to the full QNAP NAS list

Status: Status unknown

An 8-bay NAS with a 16-core 12th-gen Intel Core i9 and 64 GB of RAM, plus two M.2 NVMe slots for fast SSD storage or cache. It ships with a dual-port 10GbE card, runs the ZFS file system and has an HDMI output. Memory is non-ECC and maxes out at the 64 GB it ships with.

Bays	8
CPU	Intel Core i9-12900
Cores / Threads	16 / 24
RAM	64 GB
Product category	-
Badge	-
Hardware support status	-
OS/app support	-
Technical support end	-
Recommended replacement	-
Release year	2023
RAID levels	Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID TP
PCIe slot types	1x PCIe Gen 4 x16; 1x PCIe Gen 4 x4
RAM (max)	64 GB
Memory generation	DDR4
Memory speed (MT/s)	3200 MT/s
ECC memory	Non-ECC
Memory module type	SODIMM
Replaceable memory	Replaceable
Network ports	2x 10GbE + 2x 2.5GbE
USB ports	3x USB 3.2 Gen 2
PCIe expansion	1
M.2 slots	2
Drive bay types	3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Hot-swappable bays	Yes
CPU frequency (GHz)	4.4
Power draw, active (W)	96.25
Power supply (W)	350
Noise level (dBA)	22.1
Dimensions H x W x D	7.4 x 13 x 11.1 in (188.2 x 329.3 x 280.8 mm)
Weight	16.2 lb (7.34 kg)
Largest certified configuration observed	256 TB (8 x Seagate ST32000NT000, largest drive on the vendor HCL today; not a hardware limit)
Estimated cost to fill every bay with a certified 8 TB drive	about $2,160 new (Seagate ST8000NM017B) / about $2,520 refurbished (Seagate ST8000NE001) / about $1,640 used (Western Digital WD80EFZX) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified
Estimated cost to fill every bay with a certified 16 TB drive	about $4,000 new (Seagate ST16000NM000J) / about $3,400 refurbished (Seagate ST16000NM001G) / about $2,472 used (Seagate ST16000NM001G) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified

Search Amazon Search eBay + Compare

1 eBay listings checked Nov 9, 2026 · 1 new, 0 used (too few new listings to show a reliable new price)

Documents

• hardware_datasheet_html

Compatible Drives

587 drives certified on TVS-h874X's official manufacturer compatibility list, sourced directly from QNAP's own published Hardware Compatibility List. Each model links to that drive's own compatibility page.

Certified list last checked 2026-09-16.

Compatible Memory

3 memory modules listed by QNAP as compatible with TVS-h874X. Third-party modules may also work, but are not shown here unless QNAP itself lists them as compatible.

Certified list last checked 2026-09-09. Coverage varies by model. Rated module speed is not a guarantee of NAS operating speed; follow the NAS maximum capacity and installation rules.
