Status: Legacy / discontinued

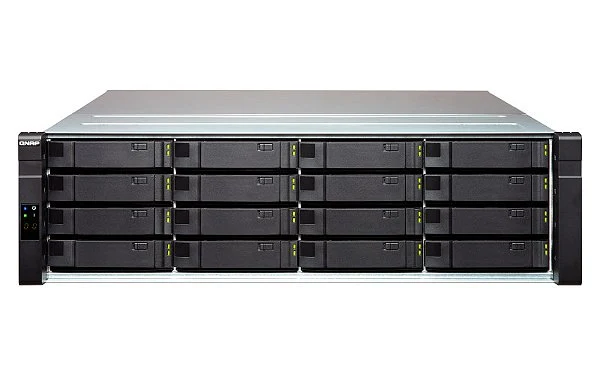

An enterprise 16-bay 3U rackmount ZFS storage system with two active-active controllers - both run at once, so one can carry on if the other fails. Each controller has a six-core Intel Xeon and ECC memory, and the bays take 12Gb/s SAS drives. It's data center gear from late 2016, drawing around 500W in typical use.
| Bays | 16 |
|---|---|
| CPU | Intel Xeon E5-2420 v2 |
| Cores / Threads | 6 / 12 |
| RAM | 48 GB |
| Product category | - |
| Badge | - |
| Hardware support status | Discontinued |
| OS/app support | EOL |
| Technical support end | EOL |
| Recommended replacement | ES1686dc R2 |
| Release year | 2016 |
| RAID levels | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| PCIe slot types | 1x PCIe Gen 3 x8; 1x PCIe Gen 2 x4 |
| RAM (max) | 48 GB |
| Memory slots | 3 |
| Memory generation | DDR3 |
| Memory speed (MT/s) | 1333 MT/s |
| ECC memory | Supported |
| Memory module type | RDIMM |
| Replaceable memory | Replaceable |
| Network ports | 6x 10GbE + 1x 1GbE |
| USB ports | 2x USB 3.0 |
| PCIe expansion | 2 |
| M.2 slots | 1 |
| Max raw capacity | 160 |
| Drive bay types | 3.5" SAS HDD, 3.5" SAS SSD, 2.5" SAS HDD, 2.5" SAS SSD |
| Hot-swappable bays | Yes |
| CPU frequency (GHz) | 2.2 |
| Power draw, active (W) | 501.4 |
| Power draw, hibernation (W) | 314.86 |
| Power supply (W) | 770 |
| Noise level (dBA) | 66.1 |
| Dimensions H x W x D | 5.2 x 17.6 x 24.3 in (132 x 446.2 x 618 mm) |
| Weight | 59 lb (26.75 kg) |
| Estimated cost to fill every bay with a certified 8 TB drive | about $3,840 new (Seagate ST8000NM0075) / about $3,200 refurbished (HGST HUH728080AL4200) / about $2,544 used (HGST HUH728080AL4200) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified |
| Estimated cost to fill every bay with a certified 16 TB drive | about $6,800 refurbished (Seagate ST16000NM001G) / about $4,944 used (Seagate ST16000NM001G) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified |
Documents
Compatible Drives
173 drives certified on ES1640dc v2's official manufacturer compatibility list, sourced directly from QNAP's own published Hardware Compatibility List. Each model links to that drive's own compatibility page.
173certified models
5drive brands
16 TBlargest listed
144with verified extra specs
Certified drives by capacity
0.1 TB4
0.2 TB5
0.25 TB1
0.3 TB2
0.4 TB12
0.45 TB5
0.48 TB2
0.6 TB10
0.8 TB14
0.9 TB9
0.96 TB4
1 TB2
1.2 TB9
1.6 TB9
1.8 TB8
1.92 TB3
2 TB11
2.4 TB2
3 TB3
3.2 TB9
3.84 TB4
4 TB11
5 TB4
6 TB10
6.4 TB1
7.68 TB3
8 TB5
10 TB3
12 TB4
14 TB1
15.36 TB2
16 TB1
Show all 173 certified drives
173 shown
| Brand | Model | Capacity | Type | Verified drive details | Recently observed offers | Status | Firmware |
|---|---|---|---|---|---|---|---|
| Seagate | ST16000NM001G details | 16.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $349.00 · Refurb: $424.99 | - | SN02 |
| Seagate | XS15360SE70103 details | 15.36 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 28000 TBW | New: $4,989.99 | - | 3a |
| Seagate | XS15360TE70004 details | 15.36 TB | Enterprise | 2500000 h MTBF · 5-year warranty · 20000 TBW | No recent verified offer | - | 2 |
| Seagate | ST14000NM001G details | 14.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $410.00 · Used: $325.00 | - | SN02 |
| HGST | HUH721212AL5200 details | 12.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $589.00 · Used: $545.00 | - | A3D0 |
| Seagate | ST12000NM0037 details | 12.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | E003 |
| Seagate | ST12000NM0027 details | 12.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $399.00 · Refurb: $644.06 | - | E003 |
| Seagate | ST12000NM001G details | 12.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $442.00 · Used: $374.99 | - | SN02 |
| Seagate | ST10000NM0096 details | 10.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 2500000 h MTBF · 5-year warranty | Refurb: $220.00 · Used: $174.99 | - | E005 |
| Seagate | ST10000NM001G details | 10.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $396.00 · Used: $299.99 | - | SN02 |
| HGST | HUH721010AL4200 details | 10.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $310.00 · Refurb: $224.99 | - | A7J0 |
| Seagate | ST8000NM0075 details | 8.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $240.00 · Used: $198.00 | - | E003 |
| Seagate | ST8000NM001A details | 8.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $169.00 | - | E001 |
| HGST | HUS728T8TAL5204 details | 8.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $565.05 · Used: $255.00 | - | C410 |
| HGST | HUH728080AL4200 details | 8.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $350.00 · Refurb: $199.99 | - | A7J0 |
| HGST | HUH721008AL4200 details | 8.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $313.65 · Used: $160.00 | - | A7J0 |
| Seagate | XS7680SE70004 details | 7.68 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 13600 TBW | No recent verified offer | - | 2 |
| Seagate | XS7680SE70103 details | 7.68 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 7000 TBW | New: $1,385.00 | - | 3a |
| Seagate | XS7680TE70004 details | 7.68 TB | Enterprise | 2500000 h MTBF · 5-year warranty · 13600 TBW | No recent verified offer | - | 2 |
| Seagate | XS6400LE70004 details | 6.4 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 35000 TBW | New: $2,199.00 | - | 2 |
| HGST | HUS726T6TAL5204 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C40H |
| HGST | HUS726060AL4210 details | 6.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $89.99 | - | A7J0 |
| Toshiba | MG04SCA60EA details | 6.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $368.00 · Refurb: $132.00 | - | 103 |
| Toshiba | MG04SCA60EE details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | Used: $99.99 | - | 103 |
| Seagate | ST6000NM029A details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $510.65 · Refurb: $478.03 | - | E001 |
| Seagate | ST6000NM0095 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $160.00 · Used: $99.99 | - | E004 |
| Seagate | ST6000NM0034 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $184.37 · Refurb: $129.00 | - | E001 |
| Seagate | ST6000NM0014 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $373.28 · Refurb: $135.00 | - | K001 |
| HGST | HUS726060AL5210 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $242.89 · Refurb: $137.50 | - | A907 |
| HGST | HUH728060AL4200 details | 6.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache | No recent verified offer | - | A7J0 |
| HGST | HUS726050AL4210 details | 5.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | A7J0 |
| Toshiba | MG04SCA50EA details | 5.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 103 |
| Toshiba | MG04SCA50EE details | 5.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 103 |
| HGST | HUS726050AL5210 details | 5.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | A907 |
| HGST | HUS726T4TAL5204 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $198.00 | - | C40H |
| HGST | HUS726040AL4210 details | 4.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Refurb: $179.99 · Used: $29.99 | - | A7J0 |
| Toshiba | MG04SCA40EA details | 4.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $100.00 · Refurb: $99.00 | - | 103 |
| Toshiba | MG04SCA40EE details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $249.59 · Refurb: $100.18 | - | 103 |
| Seagate | ST4000NM005A details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $125.00 · Used: $84.00 | - | E001 |
| Seagate | ST4000NM0125 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $298.62 · Refurb: $241.69 | - | E004 |
| Seagate | ST4000NM0014 details | 4.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $163.65 · Used: $72.99 | - | k005 |
| Seagate | ST4000NM0023 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $109.00 · Used: $49.00 | - | 4 |
| Seagate | ST4000NM0034 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $138.31 · Refurb: $70.00 | - | E001 |
| HGST | HUS726040AL5210 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $298.62 · Used: $254.06 | - | A907 |
| Seagate | ST4000NM0025 details | 4.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $98.00 · Refurb: $59.99 | - | N003 |
| Seagate | XS3840SE70004 details | 3.84 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 6800 TBW | No recent verified offer | - | 2 |
| Seagate | XS3840SE10103 details | 3.84 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 6800 TBW | No recent verified offer | - | 3a |
| Seagate | XS3840TE70004 details | 3.84 TB | Enterprise | 2500000 h MTBF · 5-year warranty | Used: $1,995.00 | - | 2 |
| Seagate | ST3840FM0003 details | 3.84 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty · 21000 TBW | No recent verified offer | - | 7 |
| Western Digital | WUSTM3232ASS204 details | 3.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | C925 |
| Western Digital | WUSTM3232ASS200 details | 3.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | C925 |
| Toshiba | PX04SMB320 details | 3.2 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | 106 |
| Seagate | XS3200ME70004 details | 3.2 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 35000 TBW | No recent verified offer | - | 2 |
| Seagate | XS3200LE70004 details | 3.2 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 17500 TBW | No recent verified offer | - | 2 |
| Seagate | ST3200FM0023 details | 3.2 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | 7 |
| Seagate | ST3200FM0063 details | 3.2 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty | New: $995.00 | - | 7 |
| Western Digital | HUSMM3232ASS200 details | 3.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A120 |
| HGST | ULTRASTAR SS200 SDLL1MLR-032T-CAA1 details | 3.2 TB | - | - | No recent verified offer | - | A00FF081 |
| Seagate | ST3000NM0023 details | 3.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $39.00 · Refurb: $29.00 | - | 4 |
| Seagate | ST3000NM0025 details | 3.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $59.95 · Refurb: $55.00 | - | N003 |
| HGST | HUS724030ALS640 details | 3.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 64 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $55.00 · Refurb: $36.27 | - | A280 |
| Toshiba | AL15SEB24EQ details | 2.4 TB | 2.5" Enterprise HDD | 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $511.88 · Used: $332.00 | - | 102 |
| Seagate | ST2400MM0129 details | 2.4 TB | 2.5" Enterprise HDD | 10000 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $469.00 · Used: $534.08 | - | C004 |
| HGST | HUS726020AL4210 details | 2.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $383.32 | - | A7J0 |
| Toshiba | MG04SCA20EA details | 2.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 103 |
| Seagate | ST2000NM0135 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Refurb: $38.50 · Used: $27.11 | - | E003 |
| Seagate | ST2000NM0023 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $68.00 · Used: $24.20 | - | 4 |
| Seagate | ST2000NM0034 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $49.99 · Refurb: $38.50 | - | E001 |
| HGST | HUS726020AL5210 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $142.00 | - | A907 |
| Toshiba | MG04SCA20EE details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $155.99 · Used: $79.00 | - | 103 |
| Seagate | ST2000NM004A details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $270.76 · Used: $445.61 | - | E001 |
| Seagate | ST2000NM0045 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $54.00 · Refurb: $60.49 | - | N003 |
| Seagate | ST2000NM0014 details | 2.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $176.05 · Used: $48.15 | - | K001 |
| HGST | HUS724020ALS640 details | 2.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $55.00 · Refurb: $38.50 | - | A280 |
| Seagate | XS1920SE70004 details | 1.92 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 3400 TBW | New: $799.00 | - | 2 |
| Seagate | XS1920SE10103 details | 1.92 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 4400 TBW | Used: $239.99 | - | 3a |
| Seagate | ST1920FM0003 details | 1.92 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | 7 |
| Toshiba | AL14SEB18EQ details | 1.8 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $120.00 · Refurb: $165.00 | - | 101 |
| Toshiba | AL15SEB18EQ details | 1.8 TB | 2.5" Enterprise HDD | 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $134.80 · Used: $197.98 | - | 102 |
| Seagate | ST1800MM0018 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $139.88 · Refurb: $66.00 | - | E004 |
| Seagate | ST1800MM0129 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 256 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $133.00 · Refurb: $70.00 | - | C004 |
| HGST | HUC101818CS4205 details | 1.8 TB | 2.5" HDD* | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $69.00 | - | 904 |
| Western Digital | HUC101818CS4204 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| HGST | HUC101818CS4201 details | 1.8 TB | 2.5" HDD* | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $143.00 | - | 904 |
| Western Digital | HUC101818CS4200 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Western Digital | WUSTM3216ASS204 details | 1.6 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | C925 |
| Western Digital | WUSTM3216ASS200 details | 1.6 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | C925 |
| Toshiba | PX04SMB160 details | 1.6 TB | 2.5" Enterprise SSD | 2000000 h MTBF · 5-year warranty | Used: $399.99 | - | 106 |
| Seagate | XS1600ME70004 details | 1.6 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | 2 |
| Seagate | XS1600LE70004 details | 1.6 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 8700 TBW | No recent verified offer | - | 2 |
| Seagate | ST1600FM0003 details | 1.6 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | Used: $157.49 | - | 7 |
| Seagate | ST1600FM0073 details | 1.6 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty · 5840 TBW | No recent verified offer | - | 7 |
| Western Digital | HUSMM3216ASS200 details | 1.6 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A120 |
| HGST | ULTRASTAR SS200 SDLL1CLR-016T-CAA1 details | 1.6 TB | - | - | No recent verified offer | - | A00FF081 |
| Toshiba | AL14SEB12EQ details | 1.2 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $105.00 | - | 101 |
| Toshiba | AL15SEB12EQ details | 1.2 TB | 2.5" Enterprise HDD | 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $149.90 · Refurb: $32.99 | - | 102 |
| Seagate | ST1200MM0018 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $60.00 · Refurb: $33.00 | - | E004 |
| Toshiba | AL14SEB120N details | 1.2 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $84.50 · Refurb: $34.00 | - | 102 |
| Seagate | ST1200MM0129 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $113.00 · Refurb: $89.09 | - | C004 |
| HGST | HUC101812CS4205 details | 1.2 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101812CS4204 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| HGST | HUC101812CS4201 details | 1.2 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101812CS4200 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Seagate | ST1000NM0023 details | 1.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 55 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $21.99 · Refurb: $33.00 | - | 4 |
| Seagate | ST1000NM0045 details | 1.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $100.00 · Refurb: $50.00 | - | N003 |
| Seagate | XS960SE70004 details | 0.96 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 1700 TBW | New: $642.92 · Used: $299.99 | - | 2 |
| Seagate | XS960SE10003 details | 0.96 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 1750 TBW | New: $642.92 · Used: $600.00 | - | 3a |
| Seagate | ST960FM0003 details | 0.96 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | 7 |
| Micron | MTFDJAK960MBT-2AN16AB details | 0.96 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | M017 |
| Toshiba | AL14SEB09EQ details | 0.9 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $69.00 · Refurb: $33.99 | - | 101 |
| Toshiba | AL15SEB09EQ details | 0.9 TB | 2.5" Enterprise HDD* | 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $181.62 · Refurb: $22.99 | - | 102 |
| Seagate | ST900MM0018 details | 0.9 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $79.99 · Refurb: $38.89 | - | E004 |
| Toshiba | AL14SEB090N details | 0.9 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $87.29 · Used: $17.99 | - | 102 |
| Toshiba | AL14SXB90EE details | 0.9 TB | 2.5" Enterprise HDD | CMR · 5-year warranty | No recent verified offer | - | 102 |
| HGST | HUC101890CS4205 details | 0.9 TB | 2.5" HDD* | 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $40.00 | - | 904 |
| Western Digital | HUC101890CS4204 details | 0.9 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| HGST | HUC101890CS4201 details | 0.9 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101890CS4200 details | 0.9 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Western Digital | WUSTM3280ASS204 details | 0.8 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | C925 |
| Western Digital | WUSTM3280ASS200 details | 0.8 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | C925 |
| Toshiba | PX04SMB080 details | 0.8 TB | 2.5" Enterprise SSD | 2000000 h MTBF · 5-year warranty · 14600 TBW | Used: $159.00 | - | 106 |
| Seagate | XS800ME70004 details | 0.8 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | 2 |
| Seagate | XS800LE70004 details | 0.8 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 4300 TBW | New: $350.00 · Used: $280.00 | - | 2 |
| Seagate | ST800FM0173 details | 0.8 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | 7 |
| Seagate | ST800FM0233 details | 0.8 TB | 2.5" Enterprise SSD* | 2000000 h MTBF · 5-year warranty | New: $699.00 | - | 7 |
| Micron | MTFDJAK800MBT-2AN16AB details | 0.8 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | M017 |
| HGST | HUSMH8080BSS205 details | 0.8 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8080BSS204 details | 0.8 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| HGST | HUSMH8080BSS201 details | 0.8 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8080BSS200 details | 0.8 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| Western Digital | HUSMM3280ASS200 details | 0.8 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A120 |
| HGST | ULTRASTAR SS200 SDLL1DLR-800G-CAA1 details | 0.8 TB | - | - | No recent verified offer | - | A00FF081 |
| Toshiba | AL14SEB06EQ details | 0.6 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $95.82 · Refurb: $34.99 | - | 101 |
| Toshiba | AL14SEB060N details | 0.6 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $30.00 · Used: $13.95 | - | 102 |
| Toshiba | AL15SEB06EQ details | 0.6 TB | 2.5" Enterprise HDD | 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $76.88 | - | 102 |
| Toshiba | AL14SXB60EE details | 0.6 TB | 2.5" Enterprise HDD | CMR · 5-year warranty | No recent verified offer | - | 102 |
| Seagate | ST600MM0018 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $90.25 · Refurb: $30.00 | - | E004 |
| Seagate | ST600MM0099 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $78.00 | - | C004 |
| HGST | HUC101860CS4205 details | 0.6 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101860CS4204 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| HGST | HUC101860CS4201 details | 0.6 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101860CS4200 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Seagate | ST480FM0003 details | 0.48 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty · 2628 TBW | No recent verified offer | - | 7 |
| Micron | MTFDJAK480MBT-2AN16AB details | 0.48 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | M017 |
| Toshiba | AL14SEB045N details | 0.45 TB | 2.5" HDD | 10500 RPM · 128 MB cache · 5-year warranty | No recent verified offer | - | 102 |
| HGST | HUC101845CS4205 details | 0.45 TB | 2.5" HDD* | 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101845CS4204 details | 0.45 TB | 2.5" Enterprise HDD | 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| HGST | HUC101845CS4201 details | 0.45 TB | 2.5" Enterprise HDD* | 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $36.20 | - | 904 |
| Western Digital | HUC101845CS4200 details | 0.45 TB | 2.5" Enterprise HDD | 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Western Digital | WUSTM3240ASS204 details | 0.4 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | C925 |
| Western Digital | WUSTM3240ASS200 details | 0.4 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 7630 TBW | New: $774.00 | - | C925 |
| Toshiba | PX04SMB040 details | 0.4 TB | 2.5" Enterprise SSD | 2000000 h MTBF · 5-year warranty · 7300 TBW | New: $255.00 · Used: $100.00 | - | 106 |
| Seagate | XS400ME70004 details | 0.4 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 4300 TBW | Refurb: $89.99 | - | 2 |
| Seagate | ST400FM0233 details | 0.4 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | New: $649.00 · Used: $56.90 | - | 7 |
| Seagate | ST400FM0303 details | 0.4 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 2190 TBW | Refurb: $94.99 · Used: $118.91 | - | 7 |
| Micron | MTFDJAK400MBT-2AN1ZAB details | 0.4 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | M017 |
| HGST | HUSMH8040BSS205 details | 0.4 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8040BSS204 details | 0.4 TB | 2.5" SSD* | 2500000 h MTBF · 18250 TBW | Used: $76.00 | - | 300 |
| HGST | HUSMH8040BSS201 details | 0.4 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8040BSS200 details | 0.4 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| HGST | ULTRASTAR SS200 SDLL1DLR-400G-CAA1 details | 0.4 TB | - | - | No recent verified offer | - | A00FF081 |
| Toshiba | AL14SEB030N details | 0.3 TB | 2.5" Enterprise HDD | 10500 RPM · 128 MB cache · CMR · Unlimited TB/year workload · 2000000 h MTBF · 5-year warranty | New: $37.60 · Used: $12.97 | - | 102 |
| Toshiba | AL14SXB30EE details | 0.3 TB | 2.5" Enterprise HDD | CMR · 5-year warranty | No recent verified offer | - | 102 |
| Western Digital | HUSMR1625ASS200 details | 0.25 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A300 |
| HGST | HUSMH8020BSS205 details | 0.2 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8020BSS204 details | 0.2 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty · 9100 TBW | Refurb: $59.95 · Used: $49.00 | - | 300 |
| HGST | HUSMH8020BSS201 details | 0.2 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8020BSS200 details | 0.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| Western Digital | HUSMM1620ASS200 details | 0.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A300 |
| HGST | HUSMH8010BSS205 details | 0.1 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8010BSS204 details | 0.1 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8010BSS201 details | 0.1 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8010BSS200 details | 0.1 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
* Type decoded from the drive model number, not stated by the NAS manufacturer.
Extra drive details are published only from manufacturer-owned documents or explicit human review. Follow the model link for field-level sources.
Certified list last checked 2026-09-16.
Looking for cameras compatible with QNAP NAS units? See the full QNAP camera compatibility database.
