Status: Legacy / discontinued

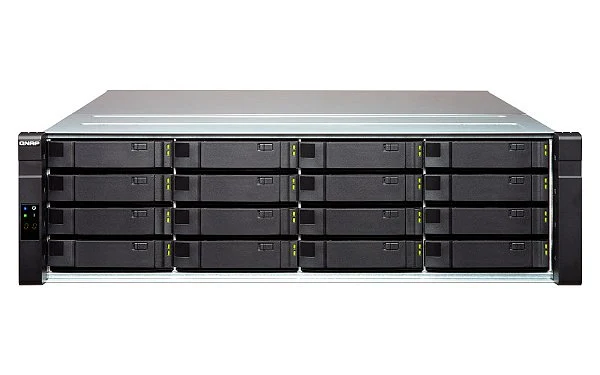

A 3U enterprise NAS with 16 SAS bays and two active-active controllers - both run at once, so if one fails the other keeps serving data. Each controller has a 6-core Intel Xeon, 32 GB of RAM and dual 10GbE ports, and NVRAM write cache with battery backup protects data during a power loss. Redundant hot-swap power supplies round it out.
| Bays | 16 |
|---|---|
| CPU | Intel Xeon E5-2420 v2 |
| Cores / Threads | 6 / 12 |
| RAM | 32 GB |
| Product category | - |
| Badge | - |
| Hardware support status | Discontinued |
| OS/app support | EOL |
| Technical support end | EOL |
| Recommended replacement | ES1686dc R2 |
| Release year | 2016 |
| RAID levels | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID TP, Triple Mirror |
| PCIe slot types | 1x PCIe Gen 2 x8; 1x PCIe Gen 2 x4 |
| RAM (max) | 64 GB |
| Memory slots | 6 |
| Memory generation | DDR3 |
| ECC memory | Supported |
| Memory module type | RDIMM |
| Network ports | 6x 10GbE + 1x 1GbE |
| USB ports | 2x USB 3.2 |
| PCIe expansion | 2 |
| Max raw capacity | 160 |
| Drive bay types | 3.5" SATA HDD, 3.5" SATA SSD, 2.5" SATA HDD, 2.5" SATA SSD |
| Hot-swappable bays | Yes |
| CPU frequency (GHz) | 2.2 |
| Power draw, active (W) | 501.4 |
| Power supply (W) | 770 |
| Noise level (dBA) | 66.1 |
| Dimensions H x W x D | 24.3 x 17.6 x 5.2 in (618 x 446.2 x 132 mm) |
| Weight | 59 lb (26.75 kg) |
| Estimated cost to fill every bay with a certified 8 TB drive | about $3,840 new (Seagate ST8000NM0075) / about $2,960 refurbished (Seagate ST8000NM0075) / about $1,920 used (Seagate ST8000NM0075) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified |
Documents
Compatible Drives
97 drives certified on ES1640dc's official manufacturer compatibility list, sourced directly from QNAP's own published Hardware Compatibility List. Each model links to that drive's own compatibility page.
97certified models
5drive brands
8 TBlargest listed
80with verified extra specs
Certified drives by capacity
0.1 TB4
0.146 TB1
0.2 TB7
0.25 TB1
0.3 TB2
0.4 TB7
0.45 TB5
0.6 TB7
0.8 TB8
0.9 TB5
1 TB2
1.2 TB6
1.6 TB2
1.8 TB5
2 TB8
3 TB3
4 TB9
5 TB6
6 TB7
8 TB2
Show all 97 certified drives
97 shown
| Brand | Model | Capacity | Type | Verified drive details | Recently observed offers | Status | Firmware |
|---|---|---|---|---|---|---|---|
| Seagate | ST8000NM0075 details | 8.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $240.00 · Refurb: $184.99 | - | E001 |
| HGST | HUH728080AL4200 details | 8.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $350.00 · Used: $159.00 | - | A7J0 |
| HGST | HUS726060AL4210 details | 6.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $89.99 | - | A7J0 |
| Toshiba | MG04SCA60EA details | 6.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $368.00 · Refurb: $132.00 | - | 103 |
| Toshiba | MG04SCA60EE details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | Used: $99.99 | - | 103 |
| Seagate | ST6000NM0034 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $159.00 · Refurb: $129.00 | - | E001 |
| HGST | HUS726060AL5210 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $220.00 · Refurb: $137.50 | - | A907 |
| HGST | HUH728060AL4200 details | 6.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache | No recent verified offer | - | A7J0 |
| HGST | HUS726T6TAL5204 details | 6.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C40H |
| HGST | HUS726050AL4210 details | 5.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | A7J0 |
| HGST | HUS726050AL5210 details | 5.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | A907 |
| Toshiba | MG04SCA500A details | 5.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 102 |
| Toshiba | MG04SCA50EA details | 5.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 103 |
| Toshiba | MG04SCA50EE details | 5.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 103 |
| Toshiba | MG04SCA500E details | 5.0 TB | 3.5" Enterprise HDD | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 102 |
| HGST | HUS726040AL4210 details | 4.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Refurb: $179.99 · Used: $29.99 | - | A7J0 |
| HGST | HUS726040AL5210 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $256.00 | - | A907 |
| Toshiba | MG04SCA400A details | 4.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 64 MB cache | No recent verified offer | - | 102 |
| Toshiba | MG04SCA400E details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | Used: $38.00 | - | 102 |
| Toshiba | MG04SCA40EA details | 4.0 TB | 3.5" NAS HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $100.00 · Refurb: $99.00 | - | 103 |
| Toshiba | MG04SCA40EE details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $251.50 · Refurb: $100.94 | - | 103 |
| Seagate | ST4000NM0023 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | New: $109.00 · Used: $49.00 | - | 4 |
| Seagate | ST4000NM0034 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $138.31 · Refurb: $70.00 | - | E001 |
| HGST | HUS726T4TAL5204 details | 4.0 TB | 3.5" Enterprise HDD | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $198.00 | - | C40H |
| Toshiba | MG04SCA300A details | 3.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 64 MB cache | No recent verified offer | - | 102 |
| Toshiba | MG04SCA300E details | 3.0 TB | 3.5" Enterprise HDD | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | Used: $38.00 | - | 102 |
| Seagate | ST3000NM0023 details | 3.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | New: $39.00 · Refurb: $29.00 | - | 4 |
| HGST | HUS726020AL4210 details | 2.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $383.89 | - | A7J0 |
| HGST | HUS726020AL5210 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $142.00 | - | A907 |
| Toshiba | MG04SCA200A details | 2.0 TB | 3.5" NAS HDD* | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 102 |
| Toshiba | MG04SCA200E details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $207.71 · Refurb: $49.95 | - | 102 |
| Toshiba | MG04SCA20EA details | 2.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | No recent verified offer | - | 103 |
| Seagate | ST2000NM0023 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $68.00 · Used: $19.99 | - | 4 |
| Seagate | ST2000NM0034 details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $49.99 · Refurb: $38.50 | - | E001 |
| Toshiba | MG04SCA20EE details | 2.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · 550 TB/year workload · 1400000 h MTBF · 5-year warranty | New: $150.00 · Used: $79.00 | - | 103 |
| Seagate | ST1800MM0018 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $139.88 · Refurb: $66.00 | - | E004 |
| Western Digital | HUC101818CS4204 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C703 |
| HGST | HUC101818CS4205 details | 1.8 TB | 2.5" HDD* | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $69.00 | - | 904 |
| HGST | HUC101818CS4201 details | 1.8 TB | 2.5" HDD* | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $143.00 | - | 904 |
| Western Digital | HUC101818CS4200 details | 1.8 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| SanDisk | SDLTOCKR-016T-5CA1 details | 1.6 TB | Enterprise | 2500000 h MTBF · 5-year warranty | Used: $257.00 | - | P404 |
| SanDisk | SDLTOCKM-016T-5CA1 details | 1.6 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty · 29200 TBW | No recent verified offer | - | P404 |
| Seagate | ST1200MM0018 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $60.00 · Refurb: $33.00 | - | E004 |
| Seagate | ST1200MM0017 details | 1.2 TB | 2.5" Enterprise HDD* | 10000 RPM · 64 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $156.06 · Refurb: $79.99 | - | 2 |
| Western Digital | HUC101812CS4204 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C703 |
| HGST | HUC101812CS4205 details | 1.2 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| HGST | HUC101812CS4201 details | 1.2 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101812CS4200 details | 1.2 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Seagate | ST1000NM0023 details | 1.0 TB | 3.5" Enterprise HDD | 7200 RPM · 128 MB cache · CMR · 55 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $21.99 · Refurb: $33.00 | - | 4 |
| Toshiba | MG03SCA100 details | 1.0 TB | 3.5" Enterprise HDD | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 1200000 h MTBF · 5-year warranty | New: $37.79 · Refurb: $291.58 | - | 1001 |
| Seagate | ST900MM0018 details | 0.9 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $79.99 · Refurb: $44.90 | - | E004 |
| Western Digital | HUC101890CS4204 details | 0.9 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C703 |
| HGST | HUC101890CS4205 details | 0.9 TB | 2.5" HDD* | 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $40.00 | - | 904 |
| HGST | HUC101890CS4201 details | 0.9 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101890CS4200 details | 0.9 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Seagate | ST800FM0173 details | 0.8 TB | 2.5" Enterprise SSD | 5-year warranty | No recent verified offer | - | A005 |
| Seagate | ST800FM0053 details | 0.8 TB | 2.5" Enterprise SSD* | 128 MB cache · 2000000 h MTBF · 5-year warranty · 14600 TBW | New: $419.00 · Used: $74.93 | - | 6 |
| SanDisk | SDLTODKM-800G-5CA1 details | 0.8 TB | Enterprise | - | No recent verified offer | - | P404 |
| SanDisk | SDLTODKR-800G-5CA1 details | 0.8 TB | Enterprise | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | P404 |
| HGST | HUSMH8080BSS205 details | 0.8 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8080BSS204 details | 0.8 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| HGST | HUSMH8080BSS201 details | 0.8 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8080BSS200 details | 0.8 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| Seagate | ST600MM0018 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $90.94 · Refurb: $30.00 | - | E004 |
| Seagate | ST600MM0026 details | 0.6 TB | 2.5" Enterprise HDD* | 10000 RPM · 64 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $35.99 · Used: $8.95 | - | 1 |
| Seagate | ST600MP0035 details | 0.6 TB | 2.5" Enterprise HDD | 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | Used: $89.11 | - | E003 |
| Western Digital | HUC101860CS4204 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C703 |
| HGST | HUC101860CS4205 details | 0.6 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| HGST | HUC101860CS4201 details | 0.6 TB | 2.5" HDD* | 10000 RPM · 128 MB cache | No recent verified offer | - | 904 |
| Western Digital | HUC101860CS4200 details | 0.6 TB | 2.5" Enterprise HDD | 10000 RPM · 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Seagate | ST450MM0026 details | 0.45 TB | 2.5" Enterprise HDD* | 10000 RPM · 64 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $32.99 · Used: $31.35 | - | 1 |
| Western Digital | HUC101845CS4204 details | 0.45 TB | 2.5" Enterprise HDD | 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | C703 |
| HGST | HUC101845CS4205 details | 0.45 TB | 2.5" HDD* | 128 MB cache | No recent verified offer | - | 904 |
| HGST | HUC101845CS4201 details | 0.45 TB | 2.5" Enterprise HDD* | 128 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $36.20 | - | 904 |
| Western Digital | HUC101845CS4200 details | 0.45 TB | 2.5" Enterprise HDD | 128 MB cache · 2000000 h MTBF · 5-year warranty | No recent verified offer | - | 904 |
| Seagate | ST400FM0233 details | 0.4 TB | 2.5" Enterprise SSD | 2500000 h MTBF · 5-year warranty | New: $649.00 · Used: $56.90 | - | A005 |
| Seagate | ST400FM0073 details | 0.4 TB | 2.5" Enterprise SSD* | 2000000 h MTBF · 5-year warranty · 7300 TBW | New: $279.00 · Refurb: $199.00 | - | 6 |
| SanDisk | SDLTODKM-400G-5CA1 details | 0.4 TB | Enterprise | 2500000 h MTBF · 5-year warranty | No recent verified offer | - | P404 |
| HGST | HUSMH8040BSS205 details | 0.4 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8040BSS204 details | 0.4 TB | 2.5" SSD* | 64 MB cache · 2500000 h MTBF · 18250 TBW | Used: $76.00 | - | 300 |
| HGST | HUSMH8040BSS201 details | 0.4 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8040BSS200 details | 0.4 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| Seagate | ST300MM0026 details | 0.3 TB | 2.5" Enterprise HDD* | 10000 RPM · 64 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $48.00 · Used: $10.95 | - | 1 |
| Seagate | ST300MP0035 details | 0.3 TB | 2.5" Enterprise HDD | 15000 RPM · 128 MB cache · 5-year warranty | No recent verified offer | - | E003 |
| Western Digital | HUSMR1625ASS200 details | 0.25 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A300 |
| Seagate | ST200FM0073 details | 0.2 TB | 2.5" Enterprise SSD* | 5-year warranty · 3650 TBW | New: $159.00 · Refurb: $119.00 | - | 6 |
| SanDisk | SDLTODKM-200G-5CA1 details | 0.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | P404 |
| HGST | HUSMH8020BSS205 details | 0.2 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8020BSS204 details | 0.2 TB | 2.5" Enterprise SSD* | 2500000 h MTBF · 5-year warranty · 9100 TBW | Refurb: $59.95 · Used: $49.00 | - | 300 |
| HGST | HUSMH8020BSS201 details | 0.2 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8020BSS200 details | 0.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
| Western Digital | HUSMM1620ASS200 details | 0.2 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | A300 |
| Seagate | ST9146853SS details | 0.146 TB | 2.5" Enterprise HDD* | 15000 RPM · 64 MB cache · CMR · 2000000 h MTBF · 5-year warranty | New: $25.99 · Used: $12.95 | - | 5 |
| Seagate | ST100FM0002 details | 0.1 TB | 2.5" Enterprise SSD* | 2000000 h MTBF · 5-year warranty | New: $650.10 | - | 3a |
| HGST | HUSMH8010BSS205 details | 0.1 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| HGST | HUSMH8010BSS201 details | 0.1 TB | 2.5" SSD* | - | No recent verified offer | - | 300 |
| Western Digital | HUSMH8010BSS200 details | 0.1 TB | 2.5" Enterprise SSD | - | No recent verified offer | - | 300 |
* Type decoded from the drive model number, not stated by the NAS manufacturer.
Extra drive details are published only from manufacturer-owned documents or explicit human review. Follow the model link for field-level sources.
Certified list last checked 2026-09-16.
