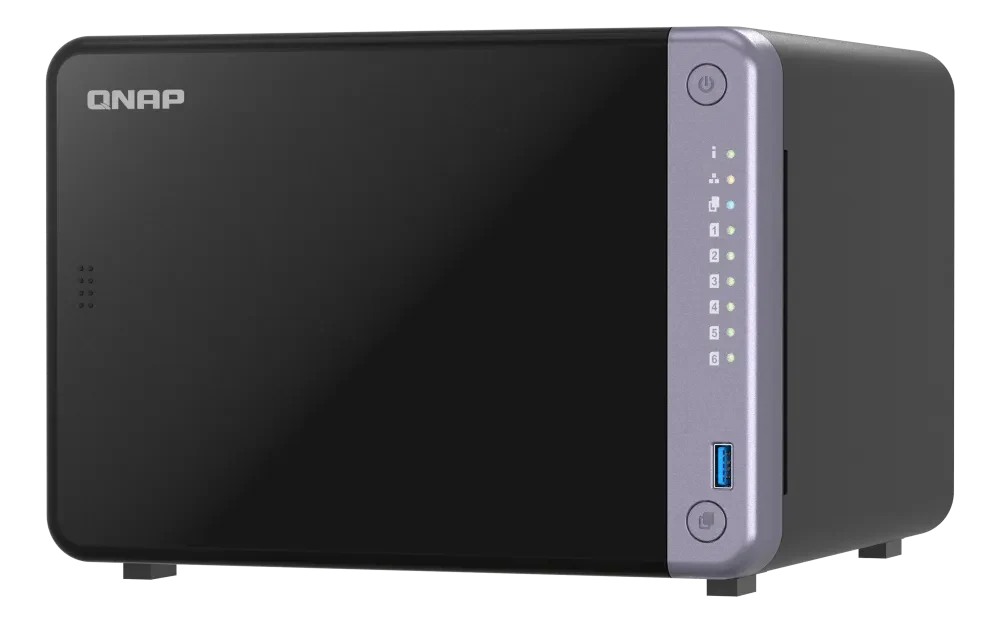

QNAP TS-632X

← Back to the full QNAP NAS list

Status: Currently sold

A 6-bay desktop NAS from June 2024 - more drive slots than a typical 4-bay box without moving to a rackmount. It runs a quad-core ARM processor with 4 GB of RAM (up to 16 GB, ECC supported), supports QTS or QuTS hero, and has a PCIe Gen 3 x4 slot for expansion. The ARM chip means fewer apps than Intel models.

Bays	6
CPU	Annapurna Labs Alpine
Cores / Threads	4 / -
RAM	4 GB
Product category	Business Storage
Badge	-
Hardware support status	Full
OS/app support	Full
Technical support end	Active
Recommended replacement	-
Release year	2024
PCIe slot types	1x PCIe Gen 3 x4
RAM (max)	16 GB
Memory slots	1
Memory generation	DDR4
ECC memory	Non-ECC
Memory module type	SODIMM
Replaceable memory	Replaceable
Network ports	2x 10GbE + 2x 2.5GbE
USB ports	2x USB 3.2 Gen 1
PCIe expansion	1; Slot 1: PCIe Gen 3 x4
Drive bay types	3.5-inch bays:; 3.5-inch SATA hard disk drives; 2.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives
Hot-swappable bays	Yes
CPU frequency (GHz)	2
Power supply (W)	120
Dimensions H x W x D	8.9 x 9.3 x 6.5 in (227 x 235 x 165 mm)
Weight	5.5 lb (2.5 kg)
Largest certified configuration observed	192 TB (6 x Seagate ST32000NT000, largest drive on the vendor HCL today; not a hardware limit)
Estimated cost to fill every bay with a certified 8 TB drive	about $1,620 new (Seagate ST8000NM017B) / about $1,890 refurbished (Seagate ST8000NE001) / about $1,230 used (Western Digital WD80EFZX) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified
Estimated cost to fill every bay with a certified 16 TB drive	about $2,850 new (Seagate ST16000NM001G) / about $3,594 refurbished (Toshiba MG08ACA16TE) / about $2,100 used (Toshiba MG08ACA16TE) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified

• Quad-core 2.0 GHz CPU
• 2x 2.5GbE, 2x 10GbE SFP+, 1x PCIe Gen 3 x4, 2 x USB 3.2 Gen 1 (5Gbps)
• Supports Docker containers

View on Amazon Search eBay (used from $767.98, new from $883.15) Official product page + Compare

7 eBay listings checked Nov 8, 2026 · 4 new, 3 used

Documents

• Product User Guide (PDF)

Compatible Drives

309 drives certified on TS-632X's official manufacturer compatibility list, sourced directly from QNAP's own published Hardware Compatibility List. Each model links to that drive's own compatibility page.

Certified list last checked 2026-09-16.

Compatible Memory

6 memory modules listed by QNAP as compatible with TS-632X. Third-party modules may also work, but are not shown here unless QNAP itself lists them as compatible.

Certified list last checked 2026-09-09. Coverage varies by model. Rated module speed is not a guarantee of NAS operating speed; follow the NAS maximum capacity and installation rules.
