Status: Currently sold

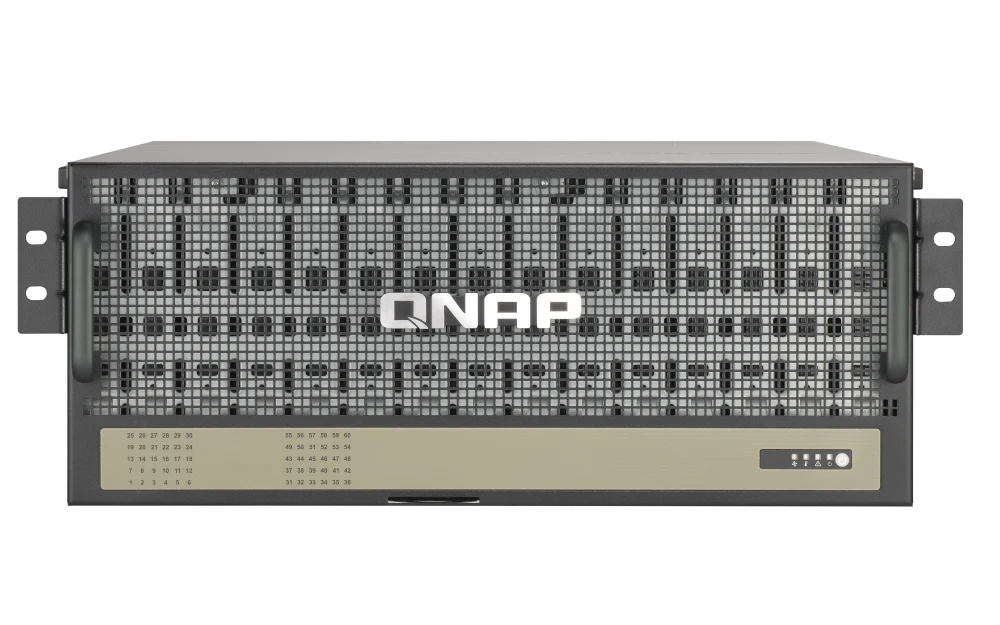

A 4U, 60-bay expansion enclosure for petabyte-scale storage like surveillance archives and big media libraries. It's not a NAS on its own - it needs a QNAP host running QuTS hero to do the work. You can daisy-chain up to four of them for 240 drives.
| Type | Expansion unit (JBOD) - needs a host NAS |
|---|---|
| Bays | 60 |
| Product category | - |
| Badge | - |
| Hardware support status | Full |
| OS/app support | N/A |
| Technical support end | Active |
| Recommended replacement | - |
| Release year | 2025 |
| RAID levels | JBOD |
| Connects to host via | SFF-8644, Mini-SAS |
| Network ports | None |
| PCIe expansion | None |
| Max raw capacity | 1000 |
| Drive bay types | 3.5-inch bays:; 3.5-inch SAS 12Gb/s, 6Gb/s hard disk drives; 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives |
| Hot-swappable bays | Yes |
| Power draw, active (W) | 746.21 |
| Power supply (W) | 1300 |
| Dimensions H x W x D | 6.9 x 19 x 29.5 in (176 x 482 x 750 mm) |
| Weight | 55.6 lb (25.21 kg) |
| Estimated cost to fill every bay with a certified 16 TB drive | about $31,199 new (Seagate ST16000NM002H) / about $28,740 used (Western Digital WD161KRYZ) -- one observed eBay unit price incl. shipping x bays; quantity availability unverified |
1 eBay listings checked Nov 8, 2026 · 1 new, 0 used (too few new listings to show a reliable new price)
Documents
Compatible Drives
53 drives certified on TL-R6020Sep-RP's official manufacturer compatibility list, sourced directly from QNAP's own published Hardware Compatibility List. Each model links to that drive's own compatibility page.
53certified models
3drive brands
32 TBlargest listed
49with verified extra specs
Certified drives by capacity
10 TB1
12 TB4
14 TB4
16 TB6
18 TB6
20 TB13
22 TB2
24 TB10
26 TB3
28 TB1
30 TB2
32 TB1
Show all 53 certified drives
53 shown
| Brand | Model | Capacity | Type | Verified drive details | Recently observed offers | Status | Firmware |
|---|---|---|---|---|---|---|---|
| Seagate | ST32000NM004K details | 32.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,899.00 · Used: $1,939.02 | - | SE02 |
| Seagate | ST30000NT011 details | 30.0 TB | 3.5" NAS HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,723.00 | - | EN02 |
| Seagate | ST30000NM004K details | 30.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,399.99 | - | SE02 |
| Seagate | ST28000NM003K details | 28.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,164.99 | - | SE02 |
| Western Digital | WD261KRYZ details | 26.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $2,264.68 | - | SWGNXJ20 |
| Western Digital | WUH722626ALE6L4 details | 26.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,020.00 | - | SWGNXJ20 |
| Western Digital | WUH722626ALE6L1 details | 26.0 TB | 3.5" Enterprise HDD* | 7200 RPM · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | SWGNXJ20 |
| Western Digital | WD242KRYZ details | 24.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $2,189.46 · Used: $875.00 | - | SWGNXJ20 |
| Western Digital | 0F65684 details | 24.0 TB | Enterprise | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | SWGNWJ20 |
| Western Digital | 0F65642 details | 24.0 TB | Enterprise | 7200 RPM · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | SWGNXJ20 |
| Toshiba | MG11ACA24TE details | 24.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 1024 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,045.00 · Used: $689.00 | - | 0102 |
| Seagate | ST24000NT031 details | 24.0 TB | 3.5" NAS HDD* | 7200 RPM · CMR · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | EN02 |
| Seagate | ST24000NM001K details | 24.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,195.00 | - | SE02 |
| Seagate | ST24000NM005H details | 24.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $2,347.02 | - | ET05 |
| Seagate | ST24000NM002H details | 24.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $893.59 · Used: $993.00 | - | SE06 |
| Western Digital | WD240KFGX details | 24.0 TB | NAS | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | 83.00A83 |
| Seagate | ST24000NM007H details | 24.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,640.00 | - | EE07 |
| Toshiba | MG11ACA22TE details | 22.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 1024 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,173.43 | - | 0102 |
| Seagate | ST22000NT001 details | 22.0 TB | 3.5" NAS HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | Used: $628.81 | - | EN01 |
| Western Digital | WD203KRYZ details | 20.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $984.67 | - | 01.01H01 |
| Western Digital | 0B48724 details | 20.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,314.82 | - | PPGNWD07 |
| Western Digital | 0B48719 details | 20.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 5-year warranty | No recent verified offer | - | PPGNXD07 |
| Toshiba | MG11ACA20TE details | 20.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 1024 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,104.91 | - | 0102 |
| Toshiba | HDEB00VGEA51 details | 20.0 TB | - | - | No recent verified offer | - | 0105 |
| Toshiba | HDEB00UGEA51 details | 20.0 TB | - | - | No recent verified offer | - | 0105 |
| Toshiba | HDEB00TGEA51 details | 20.0 TB | - | - | No recent verified offer | - | 0105 |
| Toshiba | HDEB00SGEA51 details | 20.0 TB | - | - | No recent verified offer | - | 0105 |
| Toshiba | MG10ACA20TE details | 20.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,198.00 | - | 0105 |
| Seagate | ST20000NT001 details | 20.0 TB | 3.5" NAS HDD* | 7200 RPM · 256 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $732.00 | - | EN01 |
| Seagate | ST20000NM002H details | 20.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $795.00 | - | RE06 |
| Toshiba | MG10ACA20TA details | 20.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | Used: $529.00 | - | 0105 |
| Seagate | ST20000NM007H details | 20.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $749.99 | - | FE07 |
| Western Digital | WD181KRYZ details | 18.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $799.95 · Refurb: $673.62 | - | 01.01H01 |
| Western Digital | 0B48723 details | 18.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,189.64 | - | PPGNXD07 |
| Western Digital | 0B48718 details | 18.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 5-year warranty | No recent verified offer | - | PPGNXD07 |
| Toshiba | MG11ACA18TE details | 18.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 1024 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,151.94 | - | 0102 |
| Toshiba | MG10ACA18TE details | 18.0 TB | 3.5" Enterprise HDD* | CMR | No recent verified offer | - | 0105 |
| Toshiba | MG10ACA18TA details | 18.0 TB | 3.5" Enterprise HDD* | CMR | No recent verified offer | - | 0105 |
| Western Digital | WD161KRYZ details | 16.0 TB | 3.5" Enterprise HDD | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $1,150.81 · Used: $479.00 | - | 01.01H01 |
| Western Digital | 0B48722 details | 16.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 2000000 h MTBF · 5-year warranty | New: $884.00 | - | PPGNWD07 |
| Toshiba | MG11ACA16TE details | 16.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 1024 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $900.55 | - | 0102 |
| Seagate | ST16000NM002H details | 16.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $519.99 · Used: $926.17 | - | RE06 |
| Western Digital | 0B48717 details | 16.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 5-year warranty | No recent verified offer | - | PPGNXD07 |
| Seagate | ST16000NM007H details | 16.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $650.00 | - | FE07 |
| Western Digital | WD142KRYZ details | 14.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $754.09 | - | 01.01H01 |
| Western Digital | 0B48721 details | 14.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $876.45 | - | PPGNXD07 |
| Toshiba | MG11ACA14TE details | 14.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 1024 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $871.78 | - | 0102 |
| Western Digital | 0B48716 details | 14.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | PPGNXD07 |
| Western Digital | WUH722012CLE6L4 details | 12.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $935.96 | - | PPGNWD07 |
| Western Digital | 0B48715 details | 12.0 TB | Enterprise | 7200 RPM · 64 MB cache · CMR · 550 TB/year workload · 5-year warranty | No recent verified offer | - | PPGNXD07 |
| Seagate | ST12000NM002H details | 12.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $477.99 | - | RE06 |
| Seagate | ST12000NM007H details | 12.0 TB | 3.5" Enterprise HDD* | 7200 RPM · 512 MB cache · CMR · 550 TB/year workload · 2500000 h MTBF · 5-year warranty | New: $409.99 | - | FE07 |
| Seagate | ST10000NM021H details | 10.0 TB | 3.5" Enterprise HDD* | 7200 RPM · CMR · 2500000 h MTBF · 5-year warranty | No recent verified offer | - | RE06 |
* Type decoded from the drive model number, not stated by the NAS manufacturer.
Extra drive details are published only from manufacturer-owned documents or explicit human review. Follow the model link for field-level sources.
Certified list last checked 2026-09-16.
