NAS / QNAP / TS-509 Pro

NAS

QNAP TS-509 Pro

Legacy / discontinued ยท part of the full NAS model reference - see the full list.

← Back to the full QNAP NAS list

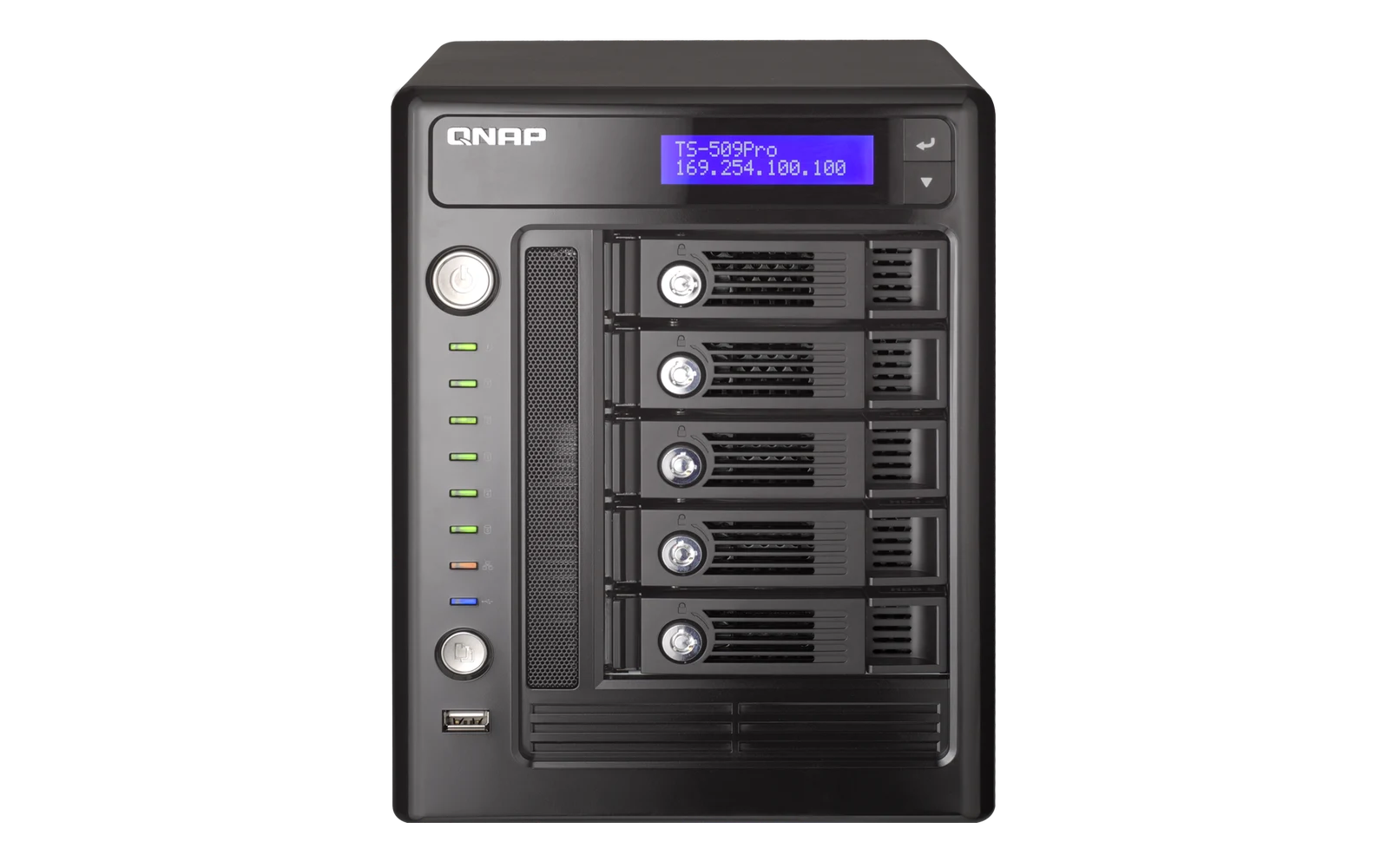

TS-509 Pro product photo

Status: Legacy / discontinued

Bays5
Product category-
Badge-
Hardware support statusDiscontinued
OS/app support2017-12 (QTS 4.2)
Technical support end2022-10
Recommended replacement-
USB ports5x USB 2.0
Hot-swappable baysyes
Search on Amazon View on eBay (used from $455.41)

2 eBay listings checked Aug 8, 2026 · 0 new, 2 used

Documents

Compatible Drives

120 drives certified on TS-509 Pro's official manufacturer compatibility list, sourced directly from QNAP's own published Hardware Compatibility List. Each model links to that drive's own compatibility page.

120certified models
7drive brands
2 TBlargest listed
3with verified extra specs
Show all 120 certified drives
120 shown
BrandModelCapacityTypeVerified drive detailsStatusFirmware
ToshibaMG03ACA2002.0 TB3.5" HDD---
ToshibaMK2002TSKB2.0 TB3.5" HDD---
ToshibaDT01ACA2002.0 TB3.5" Desktop HDD---
SeagateST2000NC0012.0 TB3.5" Enterprise HDD--CE02
SeagateST32000542AS2.0 TB3.5" HDD---
SeagateST32000641AS2.0 TB3.5" HDD5-year warranty--
SeagateST2000VN0012.0 TB3.5" NAS HDD---
SeagateST2000VX0002.0 TB3.5" Surveillance HDD--CV25
SeagateST2000NM00332.0 TB3.5" Enterprise HDD--SN04
SeagateST2000VM0032.0 TB3.5" Surveillance HDD---
SeagateST2000NM00242.0 TB3.5" Enterprise HDD--SN02
Western DigitalWD2001FASS2.0 TB3.5" HDD---
Western DigitalWD2002FAEX2.0 TB3.5" Desktop HDD---
Western DigitalWD2003FYYS2.0 TB3.5" HDD---
Western DigitalWD2002FYPS2.0 TB3.5" HDD---
SeagateST2000NC0002.0 TB3.5" Enterprise HDD--CE02
SeagateST2000NM00112.0 TB3.5" Enterprise HDD---
SeagateST32000645NS2.0 TB3.5" HDD3-year warranty--
SeagateST32000644NS2.0 TB3.5" HDD---
SamsungHD203WI2.0 TB3.5" HDD---
SamsungHD204UI2.0 TB3.5" HDD---
HitachiHDS722020ALA3302.0 TB3.5" HDD---
HitachiHDS723020BLA6422.0 TB3.5" HDD---
HitachiHDS5C3020ALA6322.0 TB3.5" HDD*---
HIKVISIONHUA722020ALA3302.0 TB----
HGSTHUS724020ALE6402.0 TB3.5" HDD---
HGSTHUA723020ALA6402.0 TB3.5" HDD---
SeagateST31500541AS1.5 TB3.5" HDD---
SeagateST1500DL0031.5 TB3.5" HDD---
SeagateST31500341AS1.5 TB3.5" HDD---
SamsungHD154UI1.5 TB3.5" HDD---
HitachiHDS723015BLA6421.5 TB3.5" HDD---
Western DigitalWD1003FBYZ1.0 TB3.5" Enterprise HDD--01.01S03
Western DigitalWD1001FALS1.0 TB3.5" HDD---
Western DigitalWD10EVCS1.0 TB----
Western DigitalWD10EALX1.0 TB3.5" HDD---
Western DigitalWD10EFRX1.0 TB3.5" HDD3-year warranty-80.00A80
ToshibaMG03ACA1001.0 TB3.5" HDD---
ToshibaDT01ACA1001.0 TB3.5" Desktop HDD---
SeagateST31000520AS1.0 TB3.5" HDD---
SeagateST1000NC0001.0 TB3.5" Enterprise HDD--CE02
SeagateST1000VX0001.0 TB3.5" Surveillance HDD--CV25
SeagateST1000NM00331.0 TB3.5" Enterprise HDD--SN04
SeagateST1000VM0021.0 TB3.5" Surveillance HDD---
Western DigitalWD10EALS1.0 TB3.5" HDD---
Western DigitalWD10EACS1.0 TB3.5" HDD---
Western DigitalWD1002FAEX1.0 TB3.5" Desktop HDD---
Western DigitalWD1002FBYS1.0 TB3.5" HDD---
Western DigitalWD1000DHTZ1.0 TB3.5" HDD---
Western DigitalWD1003FBYX1.0 TB3.5" HDD---
ToshibaMK1002TSKB1.0 TB3.5" HDD---
SeagateST1000NM00111.0 TB3.5" Enterprise HDD---
SeagateST31000524AS1.0 TB3.5" HDD---
SeagateST31000340NS1.0 TB3.5" HDD---
SeagateST1000NC0011.0 TB3.5" Enterprise HDD--CE02
SeagateST31000524NS1.0 TB3.5" HDD---
SeagateST31000340AS1.0 TB3.5" HDD---
SeagateST31000333AS1.0 TB3.5" HDD---
SeagateST31000528AS1.0 TB3.5" HDD---
SamsungHD103UJ1.0 TB3.5" HDD---
SamsungHD103SI1.0 TB3.5" HDD---
SamsungHD103UI1.0 TB3.5" HDD---
SamsungHD103SJ1.0 TB3.5" HDD---
SamsungHE103UJ1.0 TB3.5" HDD---
HitachiHDS721010KLA3301.0 TB3.5" HDD---
HitachiHDT721010SLA3601.0 TB3.5" HDD---
HitachiHDE721010SLA3301.0 TB3.5" HDD---
HGSTHDS721010CLA3321.0 TB3.5" HDD---
Western DigitalWD7501AALS0.75 TB3.5" HDD---
Western DigitalWD7500AVCS0.75 TB----
SeagateST3750330NS0.75 TB3.5" HDD---
Western DigitalWD7500AACS0.75 TB3.5" HDD---
Western DigitalWD7500AAKS0.75 TB3.5" HDD*---
Western DigitalWD7500AALX0.75 TB----
SeagateST3750630AS0.75 TB3.5" HDD*---
SeagateST3750330AS0.75 TB3.5" HDD*---
SeagateST3750528AS0.75 TB3.5" HDD---
SamsungHD753LJ0.75 TB3.5" HDD---
HitachiHDS721075KLA3300.75 TB3.5" HDD*---
HitachiHDT721075SLA3600.75 TB3.5" HDD*---
HitachiHDE721075SLA3300.75 TB3.5" HDD*---
Western DigitalWD6401AALS0.64 TB----
Western DigitalWD6400AAKS0.64 TB3.5" HDD---
Western DigitalWD6400AACS0.64 TB3.5" HDD*---
Western DigitalWD6402AAEX0.64 TB----
SeagateST3640323AS0.64 TB3.5" HDD*---
SamsungHD642JJ0.64 TB----
Western DigitalWD5003ABYZ0.5 TB3.5" HDD--01.01S03
Western DigitalWD5001AALS0.5 TB----
Western DigitalWD5000AAJS0.5 TB----
Western DigitalWD5000AAKS0.5 TB3.5" HDD---
Western DigitalWD5000AAKX0.5 TB3.5" HDD---
SeagateST3500320NS0.5 TB3.5" HDD*---
Western DigitalWD5000AACS0.5 TB3.5" HDD---
Western DigitalWD5000AVVS0.5 TB----
Western DigitalWD5003ABYX0.5 TB3.5" HDD---
SeagateST3500413AS0.5 TB3.5" HDD---
SeagateST500NM00110.5 TB3.5" Enterprise HDD*---
SeagateST3500514NS0.5 TB3.5" HDD---
SeagateST3500620AS0.5 TB3.5" HDD*---
SeagateST3500320AS0.5 TB3.5" HDD---
SeagateST3500418AS0.5 TB3.5" HDD---
SeagateST500DM0020.5 TB3.5" Desktop HDD*---
SamsungHD502LJ0.5 TB----
SamsungHD502HI0.5 TB3.5" HDD---
HGSTHDS721050CLA6620.5 TB3.5" HDD*---
Western DigitalWD4500HLHX0.45 TB3.5" HDD---
Western DigitalWD4000AAJS0.4 TB----
Western DigitalWD4000AAKS0.4 TB3.5" HDD*---
Western DigitalWD3200AAJS0.32 TB----
Western DigitalWD3200AAKS0.32 TB3.5" HDD*---
SeagateST3320613AS0.32 TB3.5" HDD*---
SeagateST3320418AS0.32 TB3.5" HDD*---
Western DigitalWD3000HLHX0.3 TB3.5" HDD---
Western DigitalWD2500AAKS0.25 TB3.5" HDD*---
SeagateST32500310NS0.25 TB3.5" HDD*---
SeagateST3250318AS0.25 TB3.5" HDD*---
SeagateST3160813AS0.16 TB3.5" HDD*---
SeagateST3160318AS0.16 TB3.5" HDD*---
Western DigitalWD1500HLHX0.15 TB3.5" HDD---

* Type decoded from the drive model number, not stated by the NAS manufacturer.

Extra drive details are published only from manufacturer-owned documents or explicit human review. Follow the model link for field-level sources.

Certified list last checked 2026-08-18.

Looking for cameras compatible with QNAP NAS units? See the full QNAP camera compatibility database.
